How Boat Anchors Work: A Detailed Look at Design, Structure & Holding Mechanics

Anchoring is one of the most critical skills in boating, yet many boat owners don’t fully understand how anchors truly work. Most people simply assume that the anchor’s weight holds the boat in place—but in reality, anchoring involves complex engineering, hydrodynamics, seabed interaction, and proper installation techniques.

A boat anchor is designed not merely to sit on the seabed but to dig, bury, grip, and hold against powerful forces created by wind, waves, tides, and the movement of the boat. To choose the right anchor and use it safely, it’s important to understand how anchor mechanics, design structure, and environmental factors work together.

This in-depth guide explores everything you need to know about the science behind boat anchors: anchor anatomy, holding mechanics, seabed interaction, shank performance, and how anchor chains and rode improve stability. The knowledge here will help any boat owner anchor more safely and confidently in all water conditions.

1. Introduction: The Science Behind Anchoring

A boat anchor’s main function is to secure a boat in place by resisting horizontal and vertical forces. These forces include:

• Wind pressure

• Tidal currents

• Waves

• Vessel weight

• Sudden load from shifting directions

Anchors must convert these forces into resistance by gripping the seabed. The effectiveness of this grip depends not only on the anchor but also on:

• Seabed type

• Anchor size

• Anchor design

• Shank angle

• The scope ratio of the rode

• Length and weight of the chain

Proper anchoring is a science, and understanding it helps prevent dragging, drifting, and accidents.

2. Anchor Anatomy: Understanding Each Component

Each part of a boat anchor plays a crucial role in performance. While designs differ among anchor types, most anchors share core structural components.

2.1 The Shank

The long, straight arm that connects the anchor to the rode.
Function:

• Determines the orientation of the anchor on the seabed

• Helps position the flukes for digging

• Absorbs tension from chain and rope

A strong shank reduces bending and improves setting ability.

2.2 The Flukes (or Blades)

These are the wide, flat surfaces that dig into the seabed.
Function:

• Provide the primary holding power

• Increase anchor’s buried depth

• Create suction when fully set

The larger the fluke area, the greater the holding strength.

2.3 The Crown

This is the hinge point or curved area that connects the flukes to the shank.
Function:

• Helps orient the anchor correctly

• Guides flukes into the seabed

2.4 The Stock (on some anchors)

A crossbar that forces the anchor to lie on its side.
Function:

• Ensures the flukes face downward

Stocked anchors are less common today due to storage limitations.

2.5 The Tip

The sharp end of the fluke.
Function:

• Penetrates the seabed

• Initiates the digging action

The quality of the tip heavily influences setting speed and performance.

3. How a Boat Anchor Works: The Holding Mechanics Explained

Anchors don’t hold boats by sheer weight—most of the holding power comes from burial and friction within the seabed.

Here’s how anchoring works step-by-step:

3.1 Step 1: The Anchor Reaches the Seabed

As the anchor drops, the weight of the chain helps orient it correctly.

3.2 Step 2: Horizontal Pull Begins

When the boat drifts back, horizontal force is applied through the rode.

Why horizontal pull is critical:

Vertical force lifts the anchor, but horizontal force helps it dig.

This is why a long scope (rope length) is essential.

3.3 Step 3: The Anchor Digs Into the Seabed

The tip penetrates the seabed.
The flukes begin to bury deeper.
The shank aligns itself depending on anchor design.

3.4 Step 4: Seabed Suction Creates Holding Power

Once buried, the seabed creates:

• Suction

• Friction

• Compression forces

This provides tremendous resistance.

3.5 Step 5: Anchor Sets and Holds

After full burial, the anchor resists:

• Wind shifts

• Current changes

• Sudden loads

• Boat swing

A properly set anchor rarely drags unless the environment changes dramatically.

4. The Role of Seabeds in Holding Power

Anchors interact differently with each type of seabed. Holding power varies significantly.

4.1 Sand

One of the best seabeds for anchoring.
Compatible anchors: plow, delta, fluke
Features:

• Strong grip

• Easy burial




•

4.2 Mud

Soft seabeds require large fluke area.
Compatible anchors: fluke, mushroom
Features:

• High suction

• Can be slow to reset

4.3 Rock

Difficult for many anchors.
Compatible anchors: claw, grapnel
Features:

• Anchor hooks onto cracks or rock formations

4.4 Clay

Hard seabed makes penetration difficult.
Compatible anchors: plow, spade
Features:

• Requires sharp, heavy anchor

4.5 Coral

Uneven, abrasive, and fragile.
Compatible anchors: claw
Features:

• Anchor must grip irregular surfaces

Understanding seabed type is crucial for choosing the correct anchor.

5. Anchor Design and How It Affects Performance

Anchor designs differ widely, each specializing in certain environments.

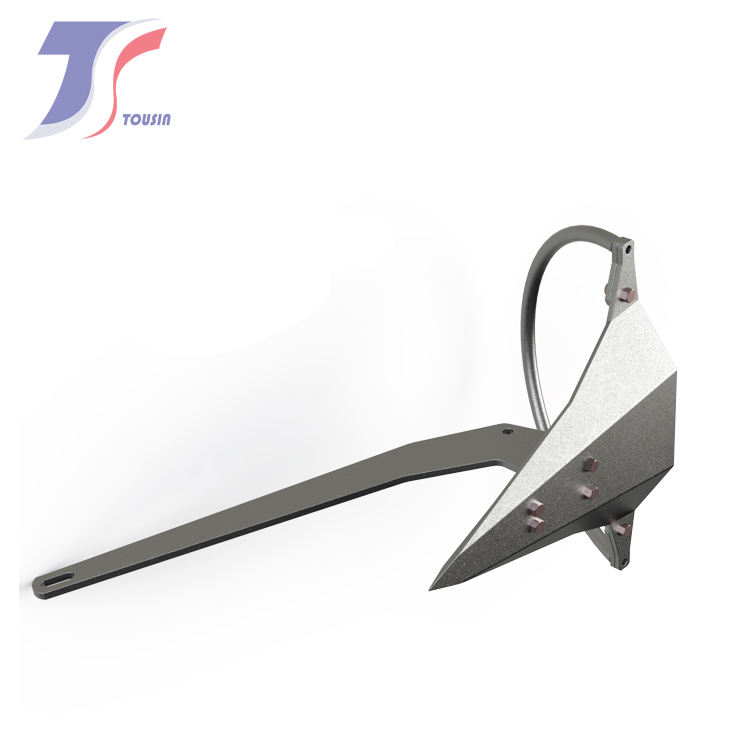

5.1 Plow Anchor

Very versatile
Great for sand, mud, and mixed bottoms
Strong reset capability

5.2 Claw Anchor

Fast setting
Excellent for rocky seabeds
Stable in strong currents

5.3 Fluke Anchor

Light and high holding power
Best performance in sand and mud
Less effective on rocky seabeds

5.4 Mushroom Anchor

Designed for long-term mooring
Relies on deep burial and suction
Good for mud

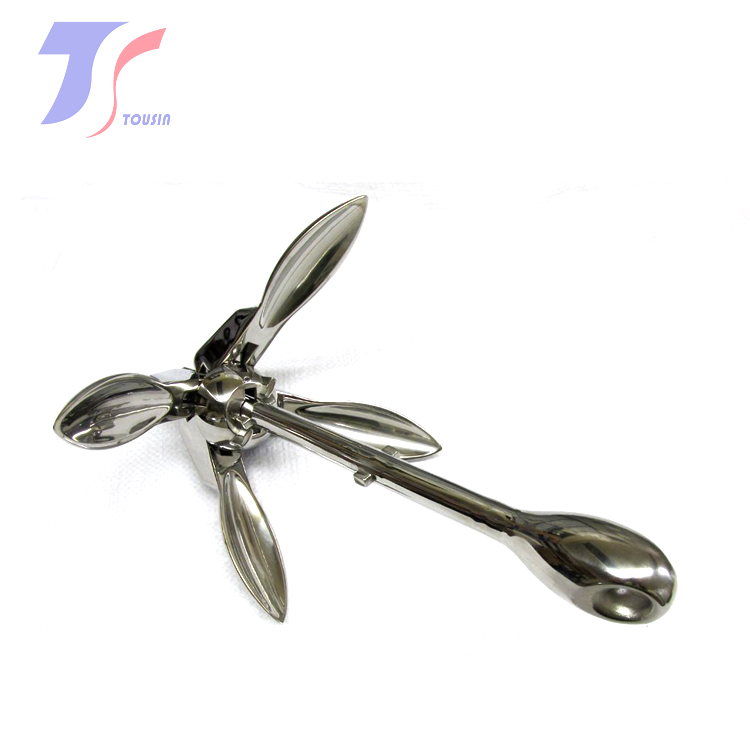

5.5 Grapnel Anchor

Hooks onto rocks
Compact and foldable
Great for small boats

Each design uses different mechanical principles to achieve holding power.

6. The Importance of Anchor Chains and Rode

An anchor alone cannot provide secure holding without the correct rode (chain + rope).

6.1 Why Chain Matters

Chain adds:

• Weight

• Shock absorption

• Constant horizontal pull

The more chain you use, the better your anchor performs.

6.2 Rope and Chain Combination

Ideal for most boaters:

• Chain protects the anchor

• Rope provides flexibility

• Easier handling

6.3 Scope Ratio

The length of the rode compared to water depth.

Recommended scope:

• 5:1 for calm waters

• 7:1 for most conditions

• 10:1 for storms

Longer rode increases horizontal force, improving anchor grip.

7. Setting an Anchor Properly

Even the best anchor fails if not set correctly.

Step-by-Step Guide:

1. Lower the anchor slowly

2. Let the boat drift backward

3. Pay out enough rode

4. Apply gentle reverse power

5. Allow the anchor to dig

6. Test the set by increasing power

7. Monitor for dragging

A well-set anchor provides far more holding power than one simply dropped.

8. Common Anchoring Mistakes

Many anchoring failures are due to avoidable mistakes.

8.1 Too Little Rode

The most common mistake.
Insufficient scope prevents proper burial.

8.2 Dropping Instead of Setting

Anchors must be pulled along the seabed to dig in.

8.3 Using the Wrong Anchor

Anchors designed for sand won’t work well in rock.

8.4 Not Considering Wind Direction

Wind shifts can pull the anchor out if it’s not reset-capable.

8.5 Using Only Rope (No Chain)

Rope alone creates vertical force—lifting the anchor.

Avoiding these mistakes improves anchoring reliability dramatically.

9. Anchor Performance in Real Marine Conditions

Real-world anchoring conditions involve:

• Dynamic vessel movement

• Wind gusts

• Tidal shifts

• Waves

• Swell

Anchors must absorb shock loads without breaking or pulling free.

High-quality anchors typically offer:

• Deep penetration

• Strong resetting ability

• Resistance to bending

• Stable orientation under stress

• Long-term durability

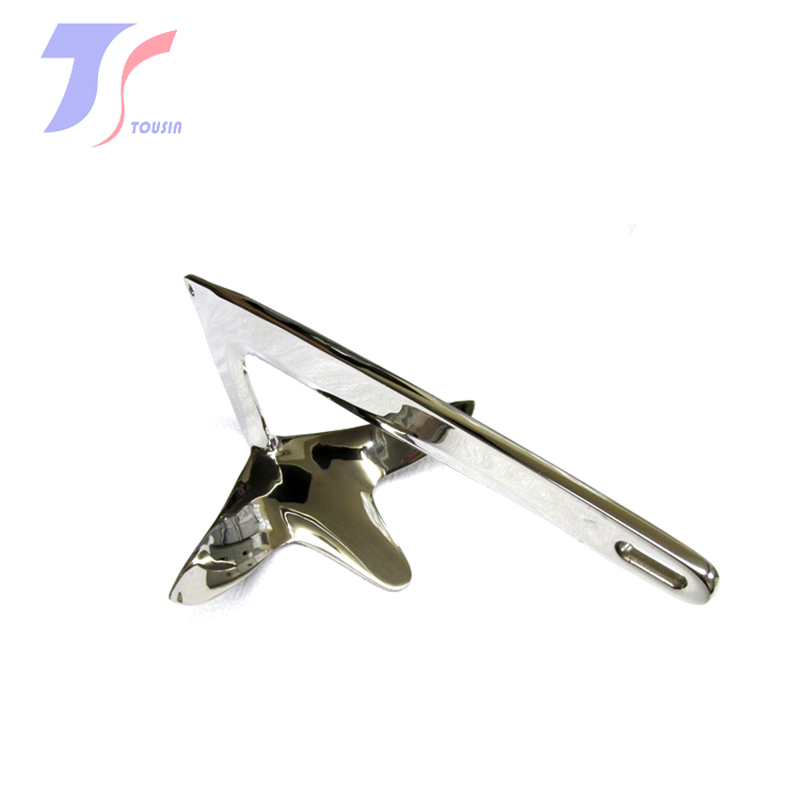

Stainless Steel Anchors perform exceptionally well in these conditions due to their structural strength and corrosion resistance.

10. Conclusion: Understanding Anchor Mechanics Ensures Safer Boating

Anchoring is far more than dropping a heavy object into the water. It involves careful engineering, seabed interaction, force distribution, and proper handling techniques. By understanding how anchors work—how they dig, hold, and resist forces—boat owners can anchor with confidence in any marine environment.

From anchor anatomy and seabed mechanics to rode selection and proper setting practices, every factor plays a role in safe and effective anchoring. With the right anchor and correct technique, you can ensure your boat stays secure, stable, and protected—no matter the conditions.
